三明治结构钌插层二氧化钛光催化四环素降解性能研究

王兆阳, 秦鹏, 蒋胤, 冯小波, 杨培志, 黄富强

Sandwich Structured Ru@TiO2 Composite for Efficient Photocatalytic Tetracycline Degradation

WANG Zhaoyang, QIN Peng, JIANG Yin, FENG Xiaobo, YANG Peizhi, HUANG Fuqiang

图4 L-TiO2和L-Ru@TiO2的形貌表征

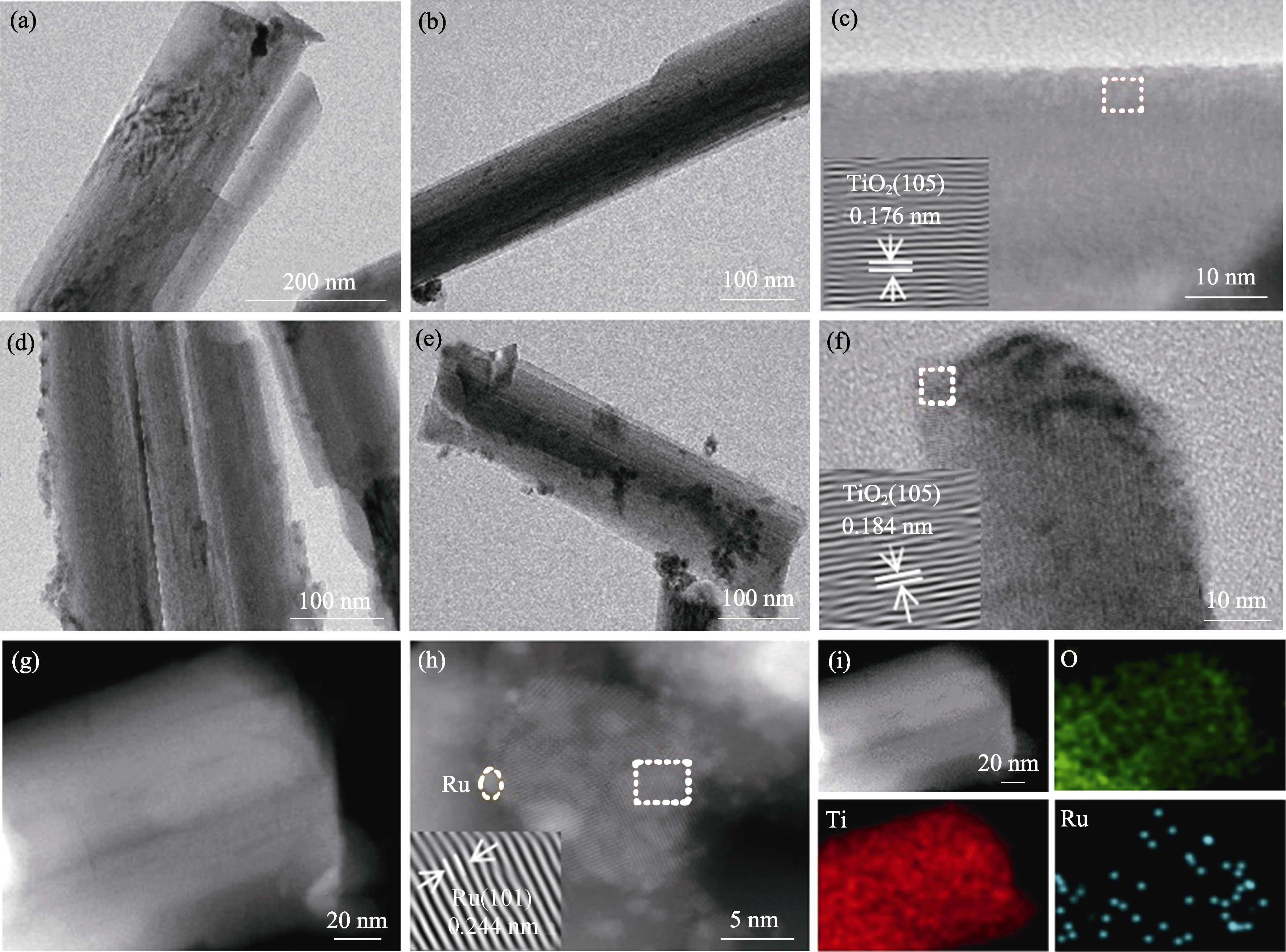

Fig. 4 Morphology characterization of L-TiO2 and L-Ru@TiO2 (a,b,d,e) TEM images of (a, b) L-TiO2 and (d, e) L-Ru@TiO2; (c, f) HRTEM images of (c) L-TiO2 and (f) L-Ru@TiO2 with insets showing lattice fringes of TiO2 (105); (g, h) HAADF images and (i) element distributions for L-Ru@TiO2
