SnS2/ZIF-8衍生二维多孔氮掺杂碳纳米片复合材料的锂硫电池性能研究
王新玲1(
), 周娜1, 田亚文1, 周明冉1, 韩静茹1, 申远升1, 胡执一1,2, 李昱1,2()
), 周娜1, 田亚文1, 周明冉1, 韩静茹1, 申远升1, 胡执一1,2, 李昱1,2()
SnS2/ZIF-8 Derived Two-dimensional Porous Nitrogen-doped Carbon Nanosheets for Lithium-sulfur Batteries
WANG Xinling1(), ZHOU Na1, TIAN Yawen1, ZHOU Mingran1, HAN Jingru1, SHEN Yuansheng1, HU Zhiyi1,2, LI Yu1,2()
), ZHOU Na1, TIAN Yawen1, ZHOU Mingran1, HAN Jingru1, SHEN Yuansheng1, HU Zhiyi1,2, LI Yu1,2()

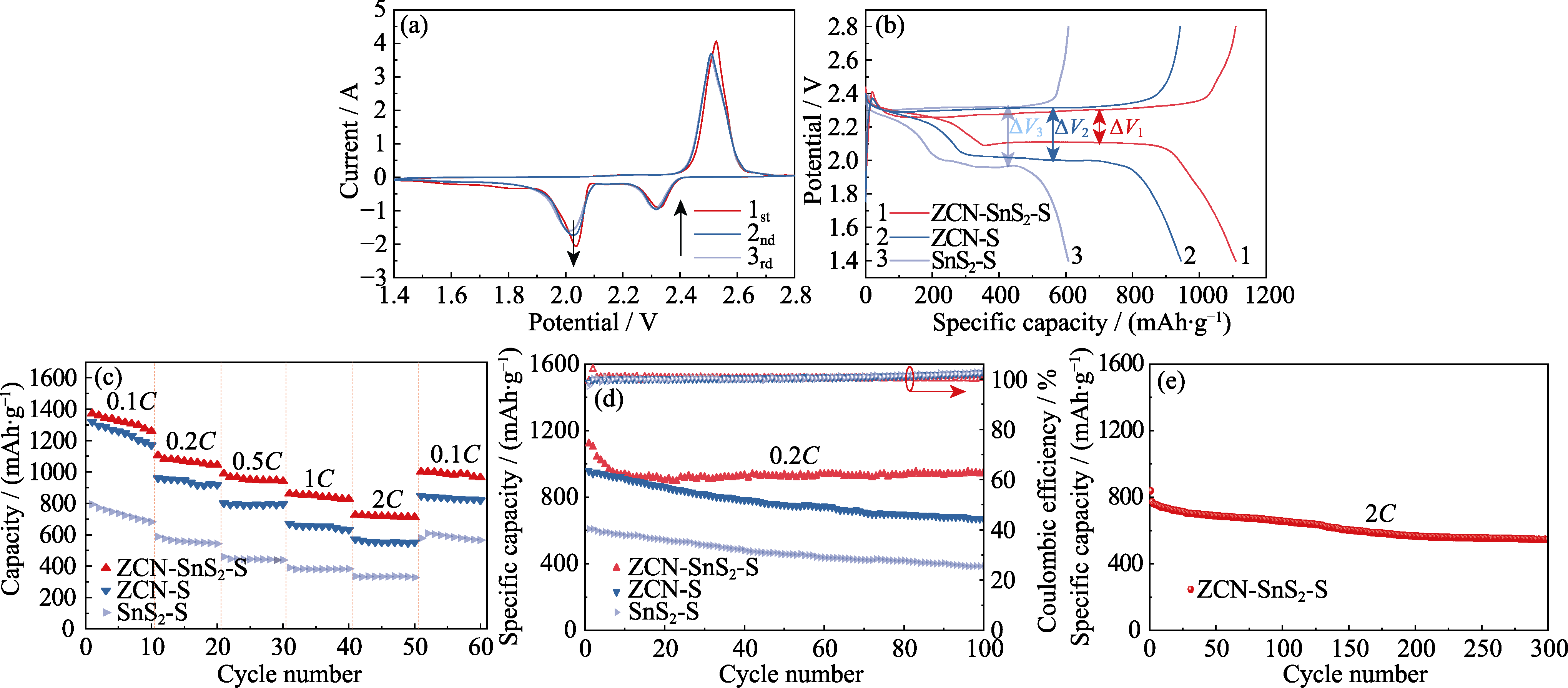

图5. (a)以ZCN-SnS2-S为电极的锂硫电池的CV曲线; 以ZCN-SnS2-S、ZCN-S、SnS2-S为电极的锂硫电池的(b)充放电曲线, (c)倍率性能和(d)0.2C下的循环性能; (e)ZCN-SnS2-S电极在2C下的循环性能
Fig. 5. (a) CV curves of Li-S battery with ZCN-SnS2-S electrode; (b) Charge-discharge curves, (c) rate performances and (d) cycling performances at 0.2C of Li-S batteries with ZCN-SnS2-S, ZCN-S and SnS2-S electrodes; (e) Cycling performance of ZCN-SnS2-S at 2C
