氧化物双介质层忆阻器的设计及应用
游钧淇1(), 李策1, 杨栋梁1, 孙林锋1,2()
Double Dielectric Layer Metal-oxide Memristor: Design and Applications
YOU Junqi1(), LI Ce1, YANG Dongliang1, SUN Linfeng1,2()

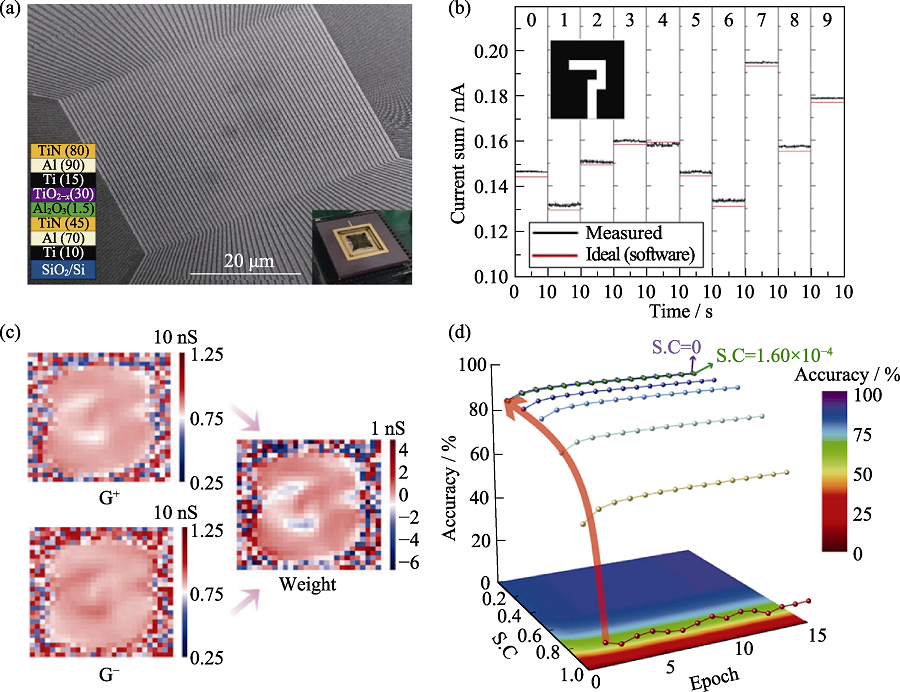

图9. 氧化物双介质层忆阻器实现图像识别

Fig. 9. Demonstration of image recognition using double dielectric layer metal-oxide memristor
(a) SEM image of the 64×64 memristor crossbar array; (b) All experimental output currents for the digit “7”[59]; (c) Recognition diagrams of conductance and synaptic weights of digit “3”; (d) Evolution of the recognition accuracy of the MNIST under different synaptic coupling and training epochs[62]
