Cansas-II SiCf/SiC复合材料的高温拉伸蠕变行为
荆开开1(
), 管皞阳1, 朱思雨1, 张超1,2, 刘永胜1,3, 王波2,4, 王晶1,3, 李玫1, 张程煜1,2()
), 管皞阳1, 朱思雨1, 张超1,2, 刘永胜1,3, 王波2,4, 王晶1,3, 李玫1, 张程煜1,2()
Tensile Creep Behavior of Cansas-II SiCf/SiC Composites at High Temperatures
JING Kaikai1(), GUAN Haoyang1, ZHU Siyu1, ZHANG Chao1,2, LIU Yongsheng1,3, WANG Bo2,4, WANG Jing1,3, LI Mei1, ZHANG Chengyu1,2()
), GUAN Haoyang1, ZHU Siyu1, ZHANG Chao1,2, LIU Yongsheng1,3, WANG Bo2,4, WANG Jing1,3, LI Mei1, ZHANG Chengyu1,2()

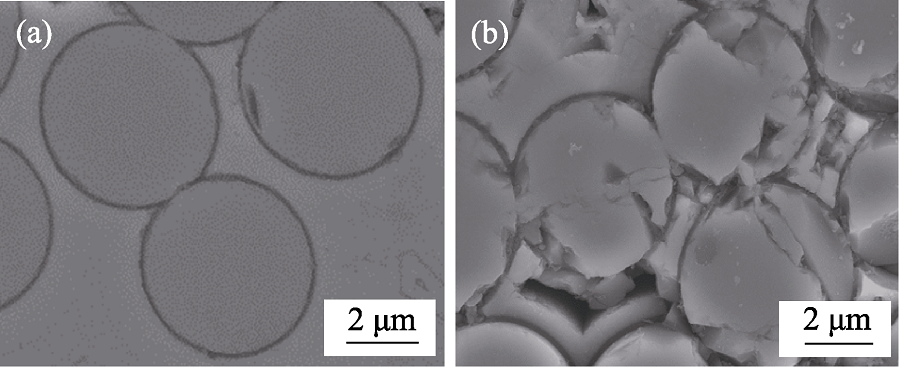

图7. 2D-SiCf/SiC蠕变后的纵向纤维微观组织
Fig. 7. Longitudinal fiber microstructures of 2D-SiCf/SiC after crept
(a)1200 ℃/110 MPa for 560 h; (b)1300 ℃/90 MPa for 500 h
