Cansas-II SiCf/SiC复合材料的高温拉伸蠕变行为
荆开开1(
), 管皞阳1, 朱思雨1, 张超1,2, 刘永胜1,3, 王波2,4, 王晶1,3, 李玫1, 张程煜1,2()
), 管皞阳1, 朱思雨1, 张超1,2, 刘永胜1,3, 王波2,4, 王晶1,3, 李玫1, 张程煜1,2()
Tensile Creep Behavior of Cansas-II SiCf/SiC Composites at High Temperatures
JING Kaikai1(), GUAN Haoyang1, ZHU Siyu1, ZHANG Chao1,2, LIU Yongsheng1,3, WANG Bo2,4, WANG Jing1,3, LI Mei1, ZHANG Chengyu1,2()
), GUAN Haoyang1, ZHU Siyu1, ZHANG Chao1,2, LIU Yongsheng1,3, WANG Bo2,4, WANG Jing1,3, LI Mei1, ZHANG Chengyu1,2()

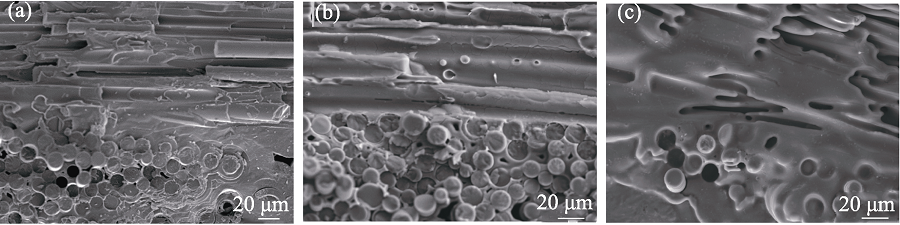

图5. 2D-SiCf/SiC在不同条件蠕变断裂的断口氧化区形貌
Fig. 5. Morphologies of fracture oxidation zone of 2D-SiCf/SiC under different creep rupture conditions
(a) 1200 ℃/120 MPa; (b) 1300 ℃/100 MPa; (c) 1400 ℃/80 MPa
