树脂基多孔碳孔结构对Cf/SiC复合材料连接性能的影响
吴西士1,2(
), 朱云洲2(), 黄庆1, 黄政仁1,2()
), 朱云洲2(), 黄庆1, 黄政仁1,2()
Effect of Pore Structure of Organic Resin-based Porous Carbon on Joining Properties of Cf/SiC Composites
WU Xishi1,2(), ZHU Yunzhou2(), HUANG Qing1, HUANG Zhengren1,2()
), ZHU Yunzhou2(), HUANG Qing1, HUANG Zhengren1,2()

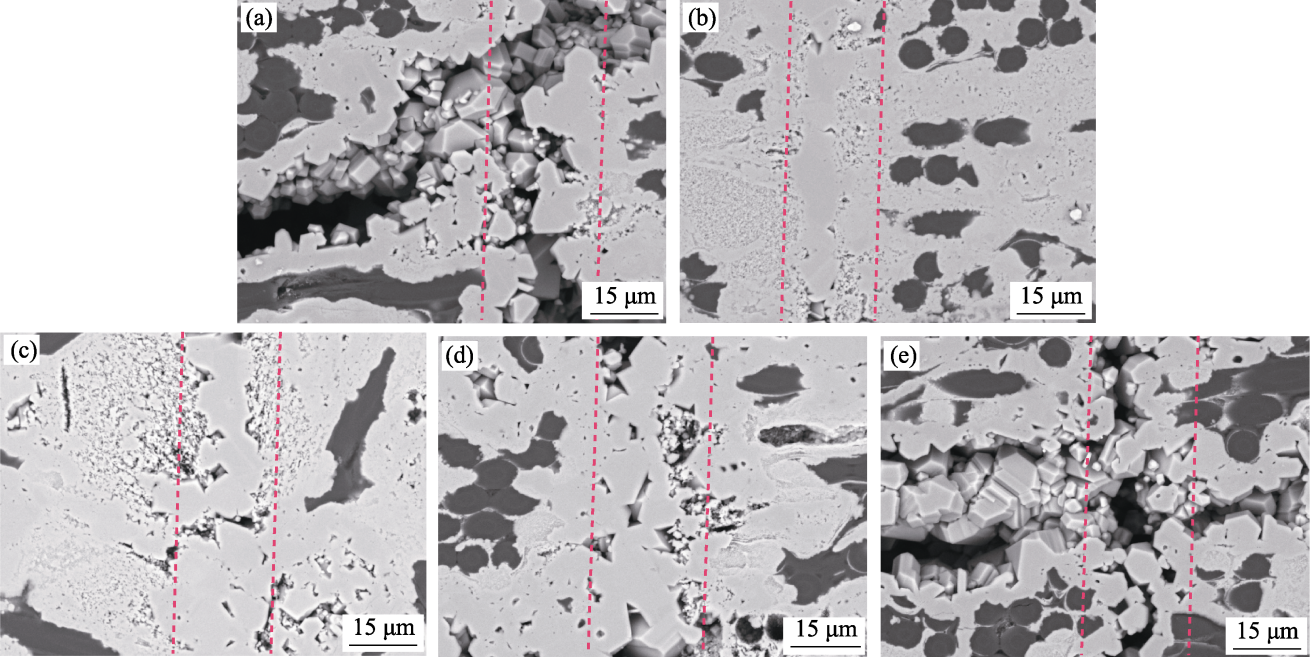

图4. HF-HNO3腐蚀后不同孔径多孔碳素坯连接样品表面形貌
Fig. 4. Surface microstructures after HF-HNO3 corrosion of joining samples with different pore sizes
(a) 14 nm; (b) 190 nm; (c) 316 nm; (d) 642 nm; (e) 1226 nm
