压电半导体纳米材料在声动力疗法中的应用进展
黄田1,2,3(), 赵运超1,2,3, 李琳琳2,3,4()
Piezoelectric Semiconductor Nanomaterials in Sonodynamic Therapy: a Review
HUANG Tian1,2,3(), ZHAO Yunchao1,2,3, LI Linlin2,3,4()

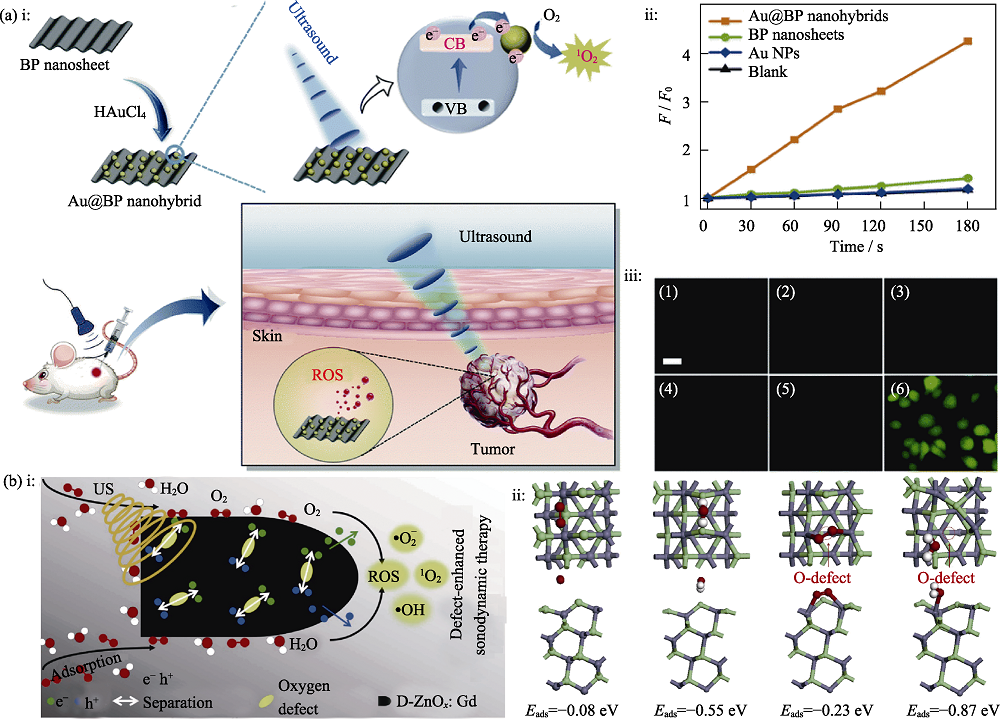

图6. 在压电半导体纳米材料上构建异质结或引入缺陷来提高SDT效率[42-43]

Fig. 6. Efficiency of SDT improved by constructing heterojunction or introducing defects on piezoelectric semiconductor nanomaterials[42-43]
(a) i: Schematic diagram of the preparation and SDT treatment with Au@BP, ii: Time-dependent fluorescence of singlet oxygen sensor green (SOSG) under ultrasound irradiation, iii: Intracellular ROS level after different treatments[42] with (1-6) indicate blank, ultrasound, BP nanosheets, Au@BP nanohybrids, BP nanosheets with ultrasound, and Au@BP nanohybrids with ultrasound, respectively; (b) i: Schematic illustration of D-ZnOx:Gd under ultrasound irradiation, ii: Strucure of defect-free ZnO and defect-rich D-ZnOx:Gd and their adsorption energies with O2 and H2O [43] BP: Black phosphorus; CB: Conduction band; VB: Valence band
