同步辐射及其在无机材料中的应用进展
刘云鹏1(
), 盛伟繁1,2, 吴忠华1,2()
), 盛伟繁1,2, 吴忠华1,2()
Synchrotron Radiation and Its Applications Progress in Inorganic Materials
LIU Yunpeng1(), SHENG Weifan1,2, WU Zhonghua1,2()
), SHENG Weifan1,2, WU Zhonghua1,2()

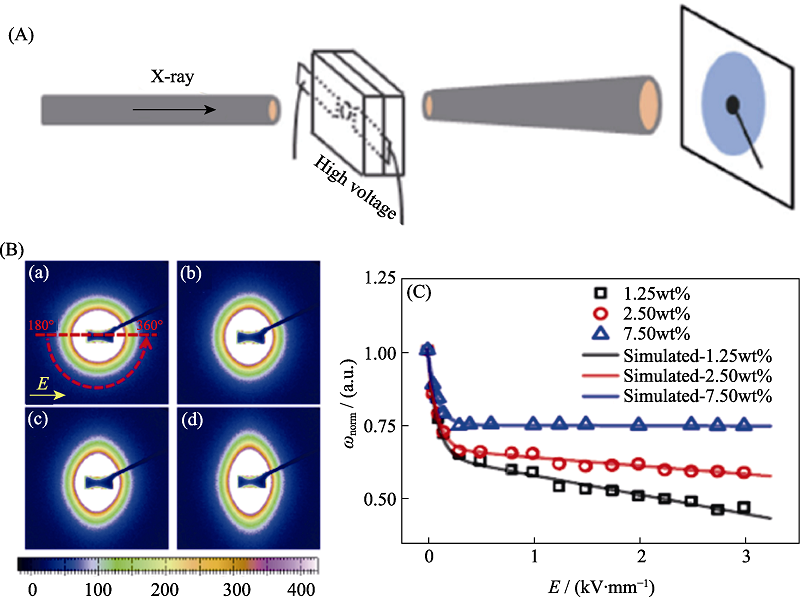

图8. 原位SAXS技术研究悬浮的外加电场诱导的Na2Ti3O7纳米纤维的取向行为[
Fig. 8. In-situ SAXS technique applied on the study for the orientation of suspended Na2Ti3O7 nanofiber induced by applied electric field[
(A) Sketch map of in-situ SAXS measurements; (B) SAXS patterns of the silicone oil suspension with 1.25wt% of Na2Ti3O7 nanofibers under the DC electric-field strength: 0 kV/mm (a), 0.5 kV/mm (b), 1.5 kV/mm (c), and 2.5 kV/mm (d); (C) Electric-field strength dependence of normalized orientation distribution width, the solid lines represent the simulation
