同步辐射及其在无机材料中的应用进展
刘云鹏1(
), 盛伟繁1,2, 吴忠华1,2()
), 盛伟繁1,2, 吴忠华1,2()
Synchrotron Radiation and Its Applications Progress in Inorganic Materials
LIU Yunpeng1(), SHENG Weifan1,2, WU Zhonghua1,2()
), SHENG Weifan1,2, WU Zhonghua1,2()

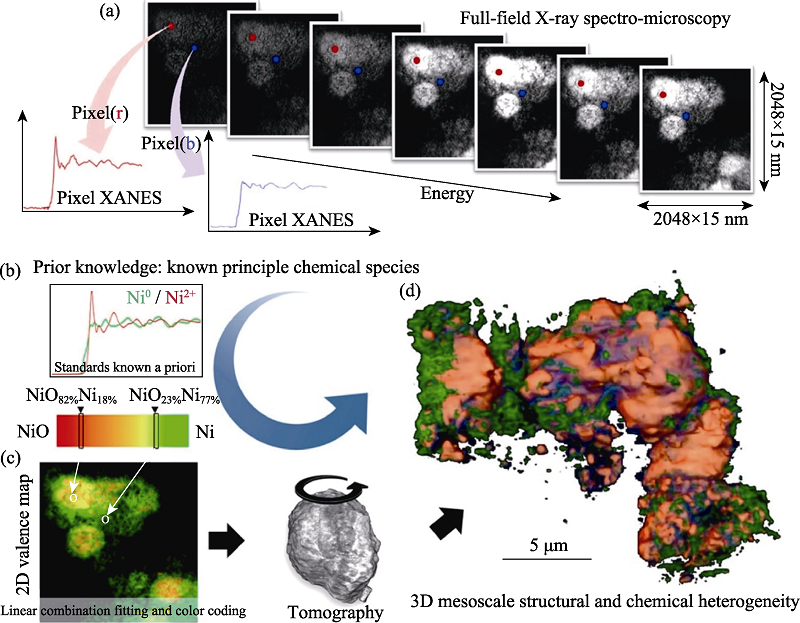

图19. X射线谱学成像技术研究的LiNi0.4Mn0.4Co0.2O2电池材料颗粒的化学成分和价态在三维空间的分布[
Fig. 19. 3D distributions of chemical components and valence states of LiNi0.4Mn0.4Co0.2O2 battery particles studied by X-ray spectro-microscopy[
(a) Panel illustrating the data structure; (b) Panel showing the prior knowledge of a list of anticipated principal chemical species in the sample, which is indispensable for the chemical mapping in this approach. Panel (c) illustrates the quantification procedures including the linear combination fitting, the color coding, and the tomographic reconstruction. Panel (d) shows the 3D mesoscale structural and chemical heterogeneity of a cluster of partially reduced NiO electrode particles
