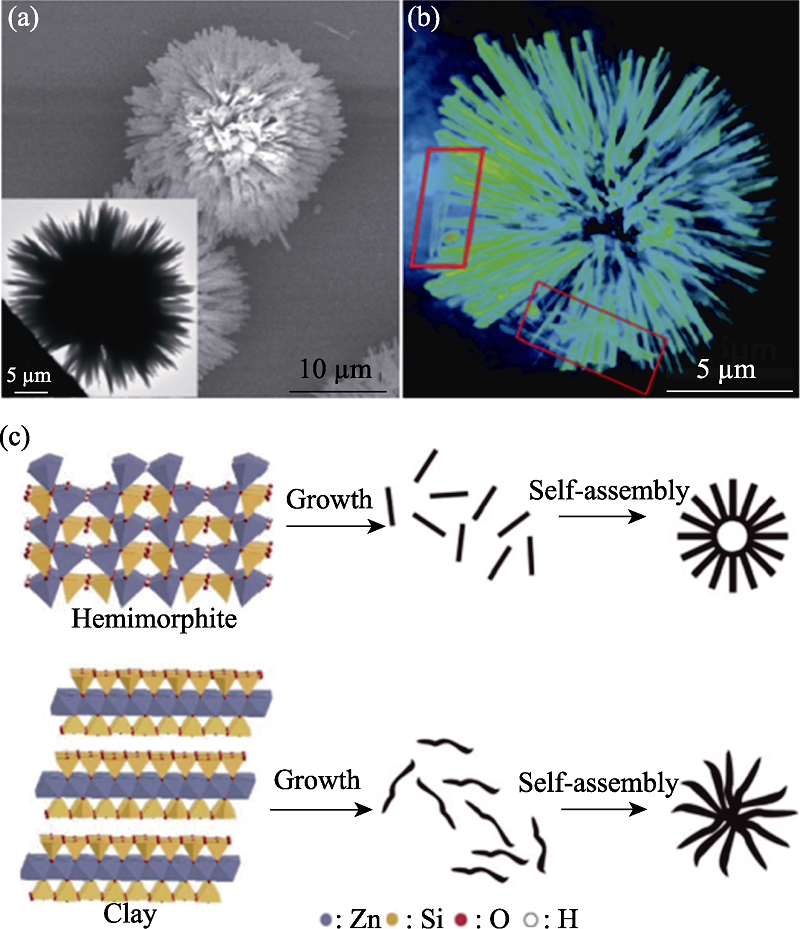

图17. 同步辐射X射线纳米成像技术研究的Zn4Si2O7(OH)2·H2O颗粒的结构缺陷和形成过程[
Fig. 17. Structural defects and formation process of Zn4Si2O7(OH)2·H2O particles studied by SR-XRI[
(a) SEM image (inset: TEM image); (b) Reconstructed three dimensional rendering view of the urchin-like zinc silicate; (c) Schematic illustration of the preparation of the zinc silicate nanomaterials
