Zn掺杂CuO/CuAl<sub>2</sub>O<sub>4</sub>复合空心球的制备及光催化性能

引用本文

李小艳, 阎建辉, 张丽, 周民杰, 刘又年. Zn掺杂CuO/CuAl₂O₄复合空心球的制备及光催化性能 . 无机材料学报, 2014, 29(10): 1055-1060
LI Xiao-Yan, YAN Jian-Hui, ZHANG Li, ZHOU Ming-Jie, LIU You-Nian. Preparation and Photocatalytic Properties of Hollow Spheres-like Zn-doped CuO/CuAl₂O₄ Composite Photocatalysts . Journal of Inorganic Materials, 2014, 29(10): 1055-1060 复制到剪切板

Permissions

This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Zn掺杂CuO/CuAl₂O₄复合空心球的制备及光催化性能

李小艳^1,², 阎建辉^1,², 张丽^1,², 周民杰², 刘又年¹

1. 中南大学化学化工学院, 长沙410083

2. 湖南理工学院化学化工学院, 岳阳 414006

通讯作者: 刘又年, 教授. E-mail:liuyounian@csu.edu.cn; 阎建辉, 教授. E-mail:yanjh58@163.com

作者简介: 李小艳(1989-), 女, 硕士研究生. E-mail:yuyicaocao@163.com

基金:国家自然科学基金(21276285,21271071);

摘要

以葡萄糖为模板, 硝酸锌、硝酸铜和硝酸铝为原料, 采用水热法制备高比表面Zn-CuO/CuAl₂O₄复合空心球。采用XRD、SEM、HRTEM、BET、DRS和PL等手段对样品进行表征, 结果表明: 在600℃下焙烧的Zn-CuO/CuAl₂O₄复合物呈空心球状, 球体直径约为2 μm, 比表面积高达214.97 m²/g。引入Zn有助于提高样品对紫外和可见光的吸收能力, 减少光生电子空穴对的复合, 光催化活性显著提高。在模拟太阳光照下, 以甲基橙溶液为目标降解物, 考察样品的煅烧温度和Zn加入量对光催化活性的影响。当Zn加入量为0.5wt%, 煅烧温度为600℃时, 样品的光催化活性最佳。光照60 min, 0.5 g/L光催化剂用量对25 mg/L甲基橙溶液的脱色率高达97%。

关键词: Zn-CuO/CuAl2O4; 空心球; 水热法; 光催化; 降解

中图分类号:O614 文献标志码:A 文章编号:1000-324X(2014)10-1055-06

Preparation and Photocatalytic Properties of Hollow Spheres-like Zn-doped CuO/CuAl₂O₄ Composite Photocatalysts

LI Xiao-Yan^1,², YAN Jian-Hui^1,², ZHANG Li^1,², ZHOU Ming-Jie², LIU You-Nian¹

1. College of Chemistry and Chemical Engineering, Central South University, Changsha 410083, China

2. School of Chemistry and Chemical Engineering, Hunan Institute of Science and Technology, Yueyang 414006, China

Fund:National Natural Science Foundation of China (21276285,21271071);

Abstract

Zn-doped CuO/CuAl₂O₄composite hollow spheres with high specific surface area were synthesized by hydrothermal method, using glucose as template and Zn(NO₃)₂·6H₂O, Cu(NO₃)₂·3H₂O, Al(NO₃)₃·9H₂O as raw materials. The samples were characterized by XRD, SEM, HRTEM, BET, DRS and PL spectra. The results showed that Zn- doped CuO/CuAl₂O₄ composites possessed hollow microspheres shape with specific surface area up to 214.97 m²/g and diameter of about 2 μm after calcined at 600℃. The Zn doped photocatalysts exhibited enhanced absorption intensity, decreased electron-hole recombination. Further photocatalytic activities of the samples were greatly increased. The influences of calcination temperature and Zn doping content on photocatalytic activities of the samples were investigated by measuring the degradation rate of methyl orange (MO) under simulated sunlight irradiation. The sample doped with 0.5wt% Zn which was calcined at 600℃ showed the highest efficiency. Under visible light irradiation for 60 min, the decolorizing efficiency of 25 mg/L MO by 0.5 g/L photocatalyst reached 97%.

Keyword: Zn-CuO/CuAl2O4; hollow sphere; hydrothermal process; photocatalysis; degradation

Show Figures

尖晶石型复合物是一类重要的功能材料, 具有熔点高、硬度高、热稳定性好和耐腐蚀性等特点, 在催化、陶瓷、染料和传感等领域具有广泛应用^{[ 1, 2, 3]}。而尖晶石结构的CuAl₂O₄制备简单, 无毒, 原材料丰富, 禁带宽度小(1.92 eV), 无光腐蚀, 在紫外和可见光下具有一定的光催化活性, 是一种具有潜在应用价值的光催化剂。目前国内外对于CuAl₂O₄光催化性能的研究比较少, Naderi等^{[ 4]}以柠檬酸溶胶-凝胶法制备CuAl₂O₄纳米颗粒, 研究合成条件对光催化性能的影响; Edrisi等^{[ 5]}采用均相沉淀法制备CuAl₂O₄, 并探究CuAl₂O₄的最佳制备条件; Liang等^{[ 6]}研究铜原料、煅烧温度对NH₃-SCO反应的影响。近年来, 金属掺杂和半导体复合成为光催化领域的研究热点。相比单一的半导体结构, 金属掺杂能在接近导价带位置产生深(或浅)的杂质能级, 提高宽带隙半导体在可见光范围的响应^{[ 7]}。而复合光催化剂能形成过渡带隙, 降低带隙能, 抑制光生电子-空穴对的复合, 延长光生载流子寿命, 提高光催化活性^{[ 8, 9, 10, 11]}。本工作采用Cu、Al、Zn的硝酸盐作为原料, 以葡萄糖为模板, 制备出空心球状的Zn-CuO/CuAl₂O₄复合光催化剂。以光催化降解甲基橙来评价其光催化活性, 研究煅烧温度和Zn加入量对样品结构和光催化性能的影响。

1 实验方法

1.1 光催化剂的制备

Zn微球的制备: 15 g 葡萄糖、4.48 g 硝酸锌分别溶于120 mL蒸馏水, 在剧烈搅拌下缓慢滴加25%的氨水, 调至pH为6, 继续搅拌10 min, 转入200 mL 的聚四氟乙烯高压反应釜中, 180℃下保温24 h, 得到黑色沉淀物并进行抽滤, 用去离子水和乙醇多次洗涤, 真空干燥后即得微球。

Zn-CuO/CuAl₂O₄空心球的制备: 称取一定量的Zn微球分散于100 mL去离子水中, 加入1.208 g硝酸铜、3.75 g 硝酸铝、0.09 g PEG(聚乙二醇), 超声30 min, 在搅拌过程中缓慢滴加25%的氨水调至pH为8, 超声30 min, 然后在室温下搅拌5 h, 将产物进行抽滤, 沉淀物用去离子水和乙醇多次洗涤, 真空干燥得到的前驱体研磨成粉末, 置于马弗炉中经不同温度煅烧4 h, 即得不同质量百分比的Zn-CuO/ CuAl₂O₄复合光催化剂, 记为 A% Zn-CuO/CuAl₂O₄。

1.2 光催化剂的表征

采用日本理学Rigaku D/max 2550 VB/PC X射线衍射仪(Cu Kα线, 管压40 kV, 管流300 mA, 扫描范围2 θ为10°~90°, 扫描速度为10.00°/min)对催化剂的晶相结构进行分析。采用场发射Nova NanoSEM230型扫描电子显微镜和Tecnai G20ST型高分辨率电子显微镜对样品形貌和结构进行分析。采用BET比表面测试仪(ASAP2020, 美国麦克仪器公司)测定样品的比表面积及孔结构大小。采用日立U-3010紫外可见分光光度计进行紫外-可见漫反射光谱(DRS)分析样品光吸收性能。用EQCM LS-55荧光分光光度计分析样品的光致发光图谱。

1.3 光催化性能的测定

在自制的二圆筒状石英光反应器中进行降解实验, 采用150 W 氙灯为光源, 外部使用外循环水和排气双重冷却系统。在500 mL、25 mg/L 的甲基橙溶液中, 加入0.25 g 光催化剂, 在密闭的暗室搅拌吸附10 min 后, 打开氙灯, 每隔10 min 取样, 高速离心分离取其上层清液, 用紫外-可见分光光度计在波长465 nm 处测定甲基橙的吸光度( A), 换算为相关浓度。

2 结果与讨论

2.1 XRD分析

图1为0.5wt% Zn加入量的样品分别在500、600、700、800、900℃煅烧4 h后的XRD图谱。由图1可知, 随着煅烧温度的升高, 产物由过渡相CuO向CuAl₂O₄发生转变。500℃煅烧, 产物主要为CuO, 样品峰与标准图谱中CuO相(JCPDS 78-0428)匹配, 其中2 θ=35.49°、38.96°处的衍射峰分别对应于CuO相的(002)、(200)晶面。600~700℃煅烧, 产物由CuO和CuAl₂O₄两相组成。煅烧温度继续上升, CuO相基本消失, 晶形完整, 晶体结晶度高, 样品峰与标准图谱中CuAl₂O₄相(JCPDS 78-1605)匹配, 其中2 θ=31.29°、36.87°、44.86°、55.69°、59.42°、65.29°分别对应于CuAl₂O₄相的(220)、(311)、(400)、(422)、(511)、(440)晶面。

	Figure Option View Download New Window

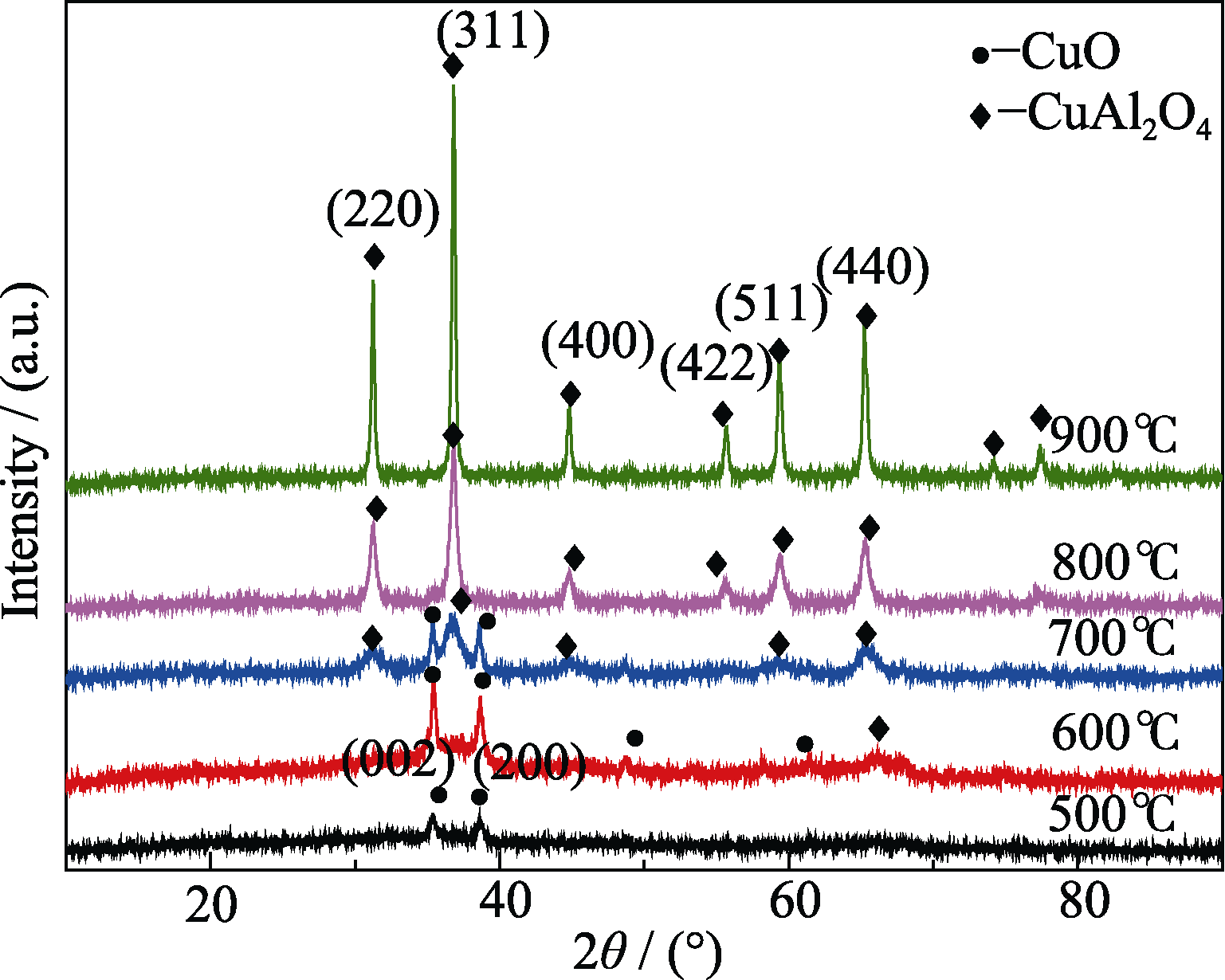

	图1 不同温度煅烧0.5wt% Zn-CuO/CuAl₂O₄样品的XRD图谱Fig. 1 XRD patterns of 0.5wt% Zn-CuO/CuAl₂O₄ samples calcined at different temperatures

图2为煅烧温度为600℃, 不同Zn加入量样品的XRD图谱。由图2可知, Zn的引入并没有破坏样品原有的晶体结构, 产物中除了大量CuO外, 还存在少量的CuAl₂O₄。图1和图2中均未出现ZnO的特征衍射峰, 可能是因为少量掺杂的Zn已高度分散于晶格中, 使ZnO含量低于XRD检测下限。为了检测样品中是否含有Zn元素以及元素掺杂均匀性问题, 对1wt% Zn-CuO/CuAl₂O₄样品的两个区域分别进行EDS元素含量分析, 其数据结果列于表1。由表1可知, 样品中除了Cu、Al和O主要元素外, 还含有原子比为0.38%的Zn元素, 对应的质量比为0.94%, 且两区域内各元素原子、质量百分比都比较接近, 表明Zn元素掺杂成功, 并且样品中各元素分布较均匀。

	Figure Option View Download New Window

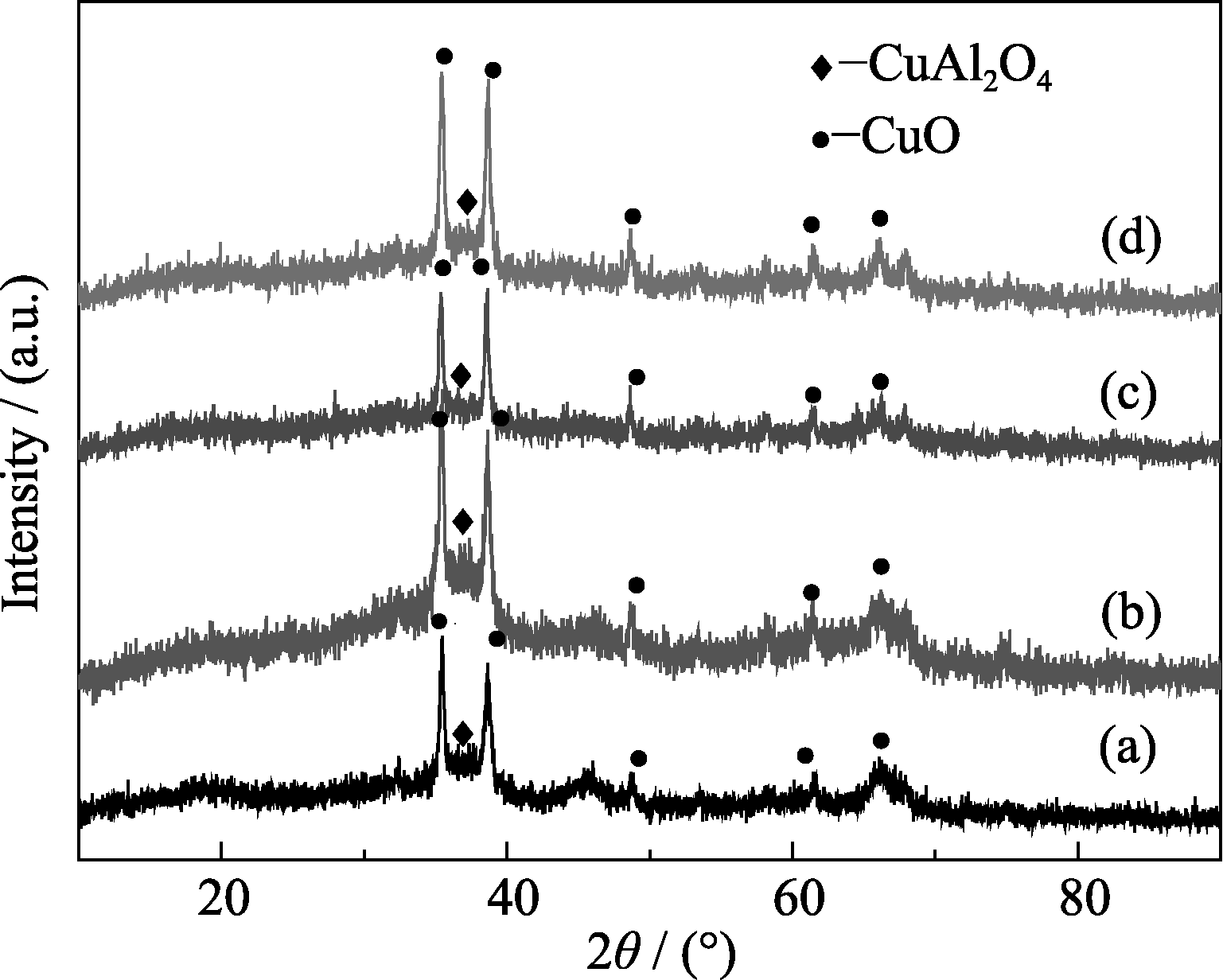

	图2 600℃煅烧Zn掺杂CuO/CuAl₂O₄样品的XRD图谱Fig. 2 XRD patterns of Zn-doped CuO/CuAl₂O₄samples calcined at 600℃(a) 0wt% Zn-CuO/CuAl₂O₄; (b) 0.5wt% Zn-CuO/CuAl₂O₄; (c) 1wt% Zn- CuO/CuAl₂O₄; (d) 2wt% Zn-CuO/CuAl₂O₄

表1 1wt% Zn-CuO/CuAl₂O₄样品的EDS分析结果 Table 1 EDS analyses of 1wt% Zn-CuO/CuAl₂O₄ samples

2.2 形貌分析

图3为不同样品的SEM和HRTEM照片。由图3(a, b)可知, Zn微球表面光滑, 球径主要分布在7~ 8 μm, 球量多而均匀。图3(a)插图为Zn微球的EDS分析, 结果显示, Zn微球主要由C、O以及少量的Zn元素组成(其中Au元素是由样品喷金处理而引入的)。图3(c)为Zn微球在500℃下煅烧所得样品的SEM照片, 由图可知, 微球煅烧后得到ZnO球体, 表明微球中含有Zn元素, 这与图3(a)分析结果一致。图3(d, e)为0.5wt% Zn-CuO/CuAl₂O₄样品的SEM照片, 由图可知, 空心球表面粗糙, 内部存在明显的中空结构, 反应过程中由于柯肯达尔效应^{[ 12, 13]}, 产物的直径减少到2 μm 左右。空心球的球壁由许多小颗粒组合而成, 小颗粒的尺寸大约在30 nm。图3(f)为0.5wt% Zn-CuO/CuAl₂O₄样品的HRTEM照片, 由图可知, CuO和CuAl₂O₄之间存在清晰的异质结结构, 表明样品由CuO和CuAl₂O₄复合而成, 这与XRD的检验结果相吻合。CuAl₂O₄的 d₍₃₁₁₎、 d₍₂₂₀₎值分别为0.2541、0.2865 nm, 而未掺杂CuAl₂O₄的 d₍₃₁₁₎、 d₍₂₂₀₎值分别为2.4360、2.8560 nm。可见, Zn掺杂CuAl₂O₄的晶面间距增大, 这是由于Zn²⁺(0.074 nm)进入四面体部分代替Cu²⁺(0.072 nm)而引起。

	Figure Option View Download New Window

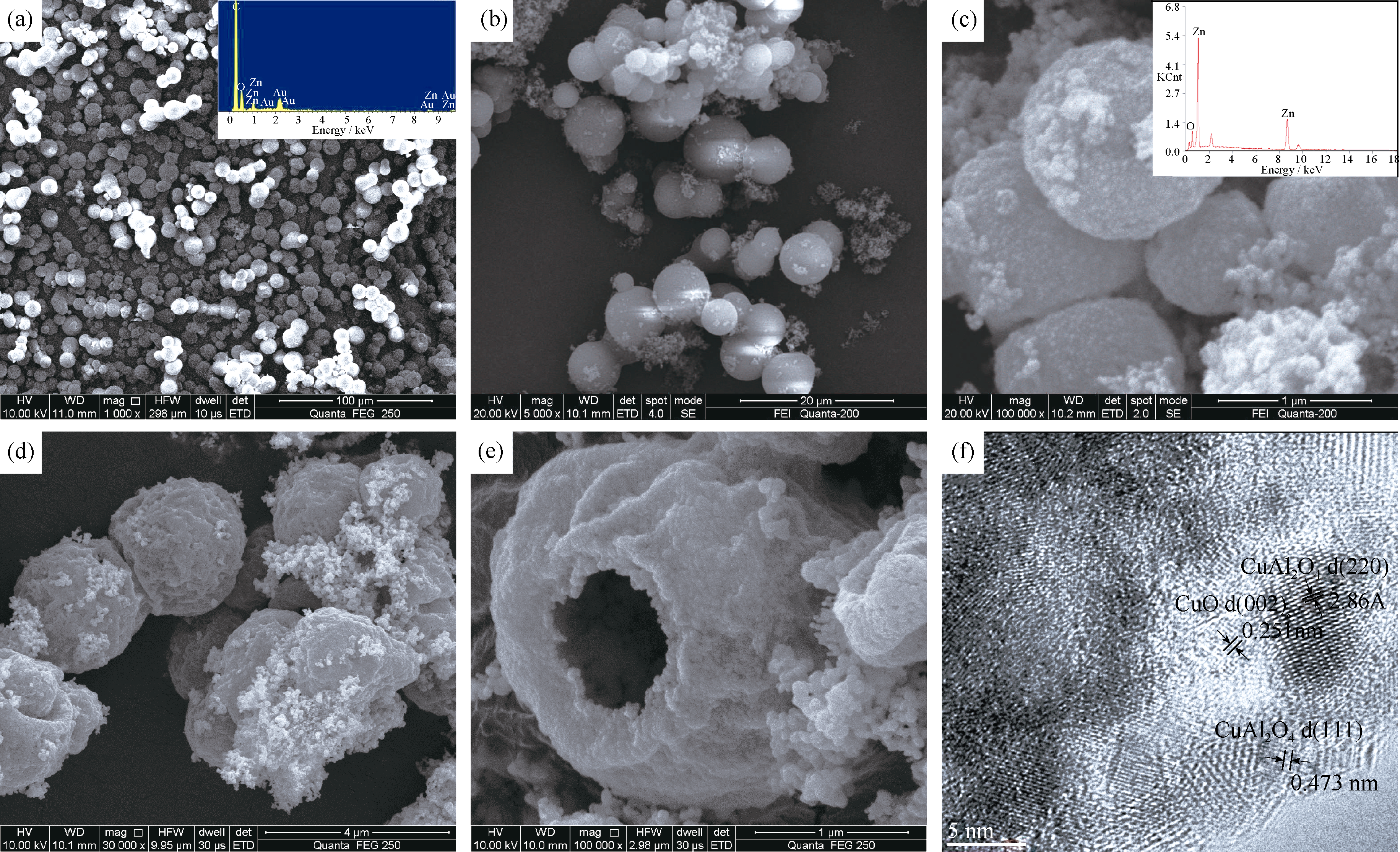

	图3 Zn微球(a, b), 500℃煅烧Zn微球(c)和0.5wt% Zn-CuO/CuAl₂O₄样品(d, e)的SEM照片, 0.5wt% Zn-CuO/CuAl₂O₄样品(f)的HRTEM照片Fig. 3 SEM images of Zn microspheres (a, b), Zn microspheres calcined at 500℃(c), 0.5wt% Zn-CuO/CuAl₂O₄ samples (d, e) andHRTEM images of 0.5wt% Zn-CuO/CuAl₂O₄ samples (f)

2.3 BET比表面积及孔结构分析

当煅烧温度为600℃时, 不同Zn加入量样品的比表面积和孔结构参数列于表2。由表2可知, 随着Zn加入量的增加, 样品比表面积和孔体积先增大后减小, 说明少量引入Zn可以促进CuO/CuAl₂O₄样品的分散, 当Zn加入量为0.5 wt%时, 产物的比表面积和孔体积最大, 分别为214.97 m²/g和0.71 cm³/g。图4为Zn掺杂CuO/CuAl₂O₄样品的N₂吸附-脱附等温线及孔径分布图。根据BDDT分类, 图4(A)吸附等温线属于Ⅳ类、H₂滞后环, 表明Zn-CuO/CuAl₂O₄复合空心球上存在孔结构^{[ 14, 15]}。曲线a、b、c、d在低压和相对较高压力(0.8< p/ p₀<1.0)范围内均具有一定的吸附性, 可见滞后环不仅与初级粒子之间聚合形成的小孔有关, 也与次级粒子之间聚合形成的大孔有关^{[ 16, 17, 18]}。这一点可以通过图3(d, e)证实。随着Zn加入量的增大, 孔径的大小发生明显变化, 当Zn加入量为0.5wt%时, 曲线b的平均孔径为9.2 nm, 高于其他加入量的孔径, 这可能与复合空心球的中空内部结构有关。

	Figure Option View Download New Window

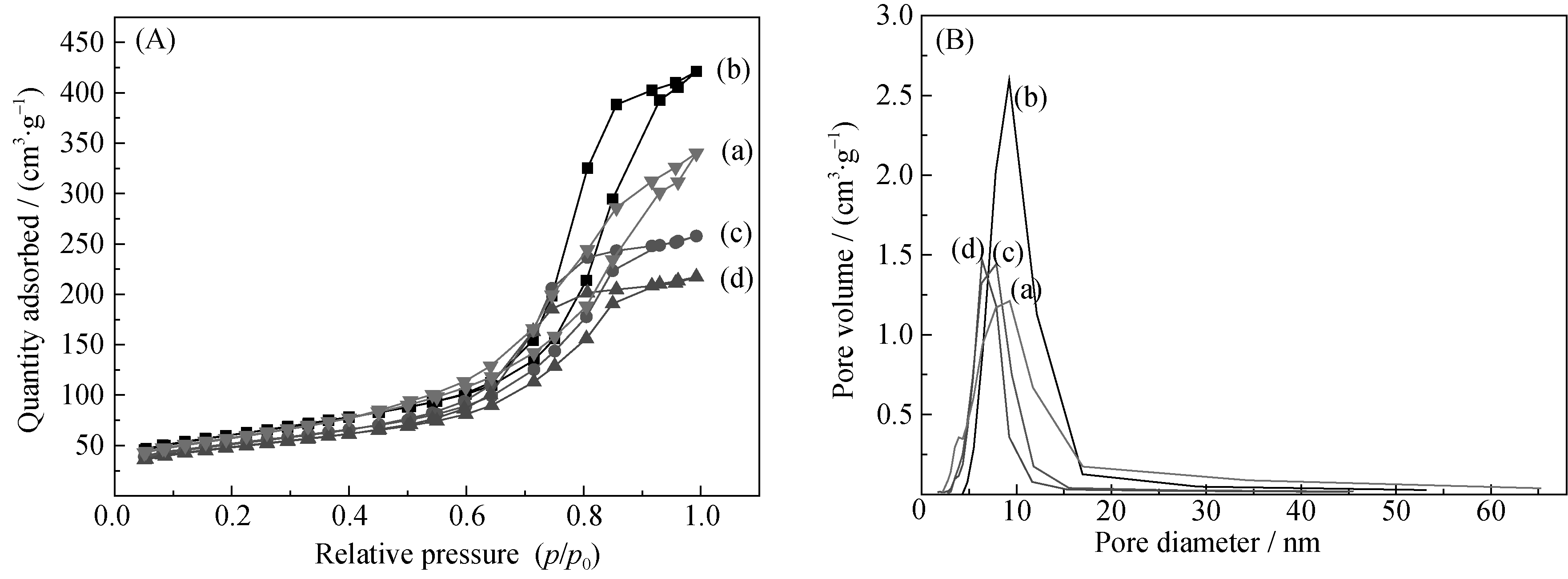

	图4 Zn掺杂CuO/CuAl₂O₄样品的(a)N₂吸附-脱附等温线和(b)孔径分布图Fig. 4 (A) N₂ adsorption-desorption isotherms and (B) pore size distribution curves of Zn-doped CuO/CuAl₂O₄ samples(a) 0wt% Zn-CuO/CuAl₂O₄; (b) 0.5wt% Zn-CuO/CuAl₂O₄; (c) 1wt% Zn-CuO/CuAl₂O₄; (d) 2wt% Zn-CuO/CuAl₂O₄

2.4 UV-Vis DRS分析

图5为Zn掺杂CuO/CuAl₂O₄样品在600℃煅烧下的紫外-可见漫反射光谱, 由图可以看出, 当Zn加入量为0.5wt%时, 样品的光吸收性能最大, 掺杂后的样品在紫外和可见光范围内的光吸收能力大大增加, 并伴随着紫外可见吸收边带的红移, 这可能是由于Zn掺杂引入了杂质能级, 使得带隙能降低, 因而可见光利用率高。此外, 随着Zn加入量的增大, 样品颜色由抹茶绿-墨绿-灰绿发生变化。CuO/CuAl₂O₄样品在400~800 nm处也具有一定的吸收能力, 表明CuO/CuAl₂O₄本身具有一定的可见光吸收性能。根据公式 E_g =1240 /λ_g可以估算产物的禁带宽度, E_g表示能带宽度(单位: eV), λ_g表示半导体材料吸收边界延长线与横轴交点处的波长值(单位: nm)。如图5所示, 可以估算0.5wt% Zn-CuO/CuAl₂O₄复合物的禁带宽度为1.55 eV, 小于CuAl₂O₄(1.92 eV)的禁带宽度。

	Figure Option View Download New Window

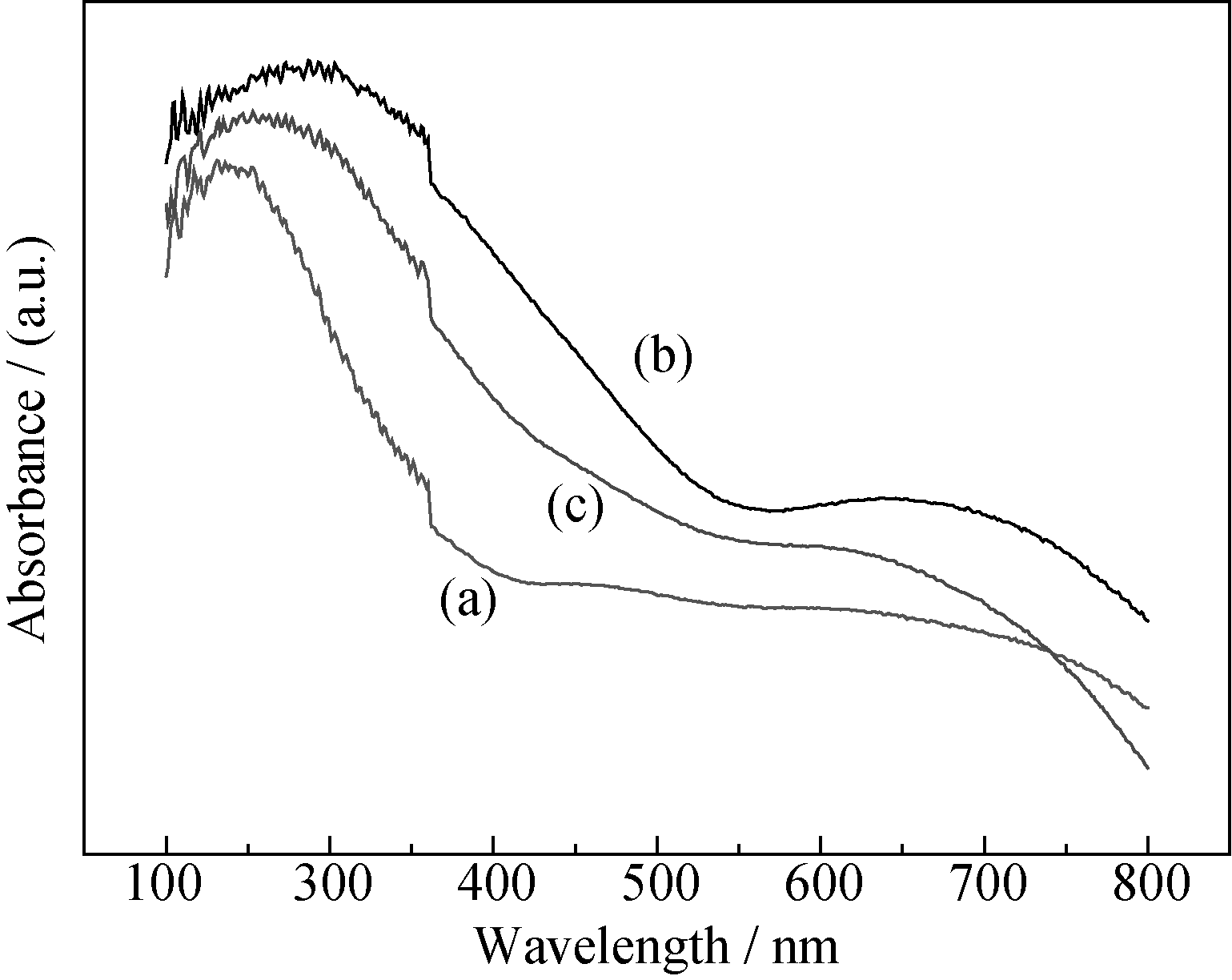

	图5 Zn掺杂CuO/CuAl₂O₄样品的UV-Vis DRS图谱Fig. 5 UV-Vis DRS spectra of Zn-doped CuO/CuAl₂O₄ samples(a) 0wt% Zn-CuO/CuAl₂O₄; (b) 0.5wt% Zn-CuO/CuAl₂O₄; (c) 1wt% Zn-CuO/CuAl₂O₄ calcined at 600℃

表2 Zn掺杂CuO/CuAl₂O₄样品的物理性质 Table 2 Physical property of Zn-doped CuO/CuAl₂O₄ samples

2.5 PL光谱分析

图6为0wt% Zn-CuO/CuAl₂O₄和0.5wt% Zn-CuO/ CuAl₂O₄样品的PL图谱, 激发波长为233 nm。通常光致发光光谱是由光生电子空穴对的复合而产生^{[ 19]}。从图6可以看出, 引入Zn并没有引发新的发光现象, 掺杂Zn后, CuO/CuAl₂O₄光谱强度明显减弱, 表明Zn掺杂可以抑制电子和空穴的复合。因此在光催化降解中0.5wt% Zn-CuO/CuAl₂O₄有可能会表现出更好的光催化活性。

	Figure Option View Download New Window

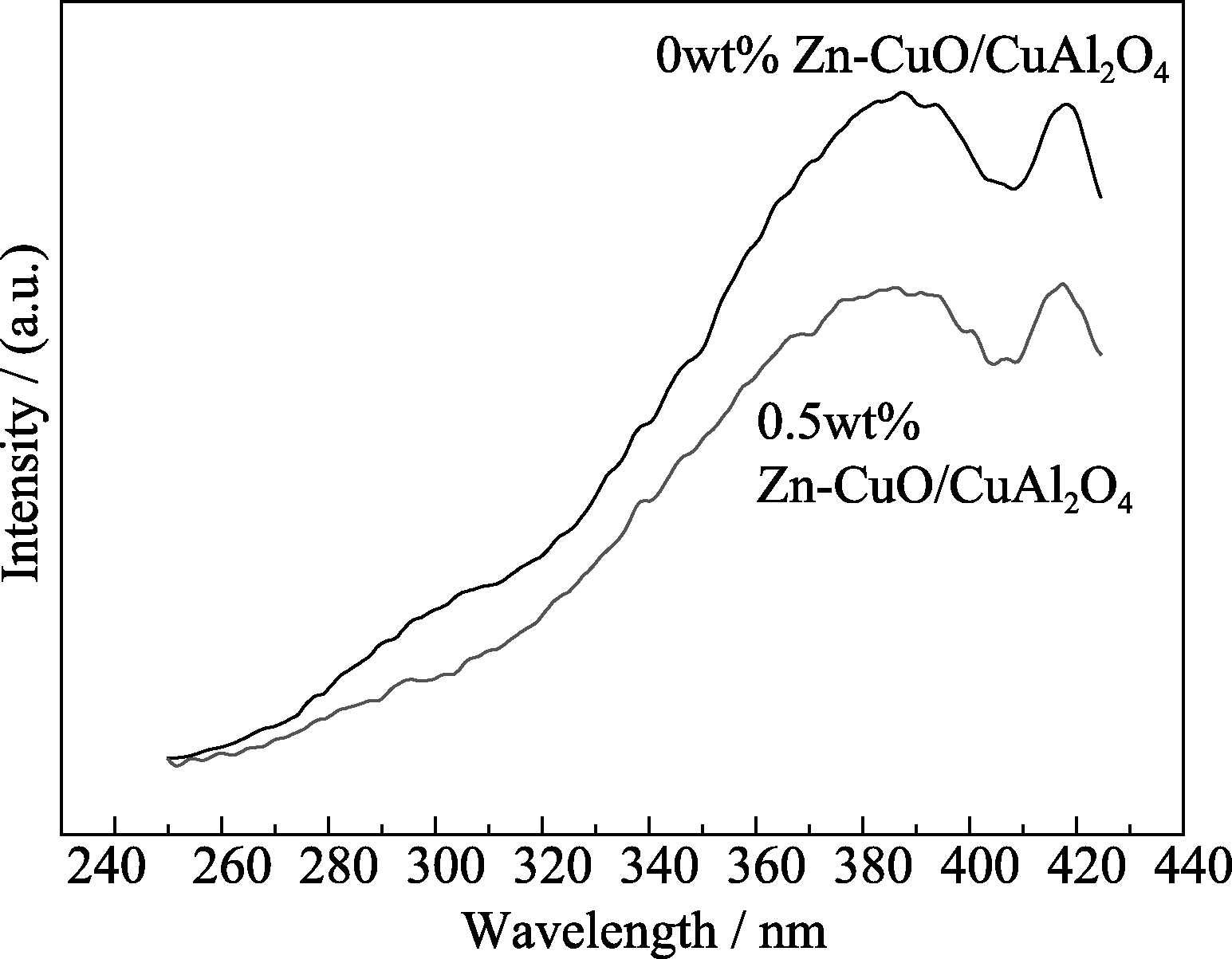

	图6 0wt% Zn-CuO/CuAl₂O₄和0.5wt% Zn-CuO/CuAl₂O₄样品的光致发光图谱Fig. 6 PL spectra of 0wt% Zn-CuO/CuAl₂O₄ and 0.5wt% Zn- CuO/CuAl₂O₄ samples

2.6 光催化活性的评价

2.6.1 煅烧温度的影响

图7为经500、600、700、800、900℃煅烧后0.5wt% Zn-CuO/CuAl₂O₄样品对甲基橙溶液的降解效果。由图7可知, 煅烧温度由500℃升高到600℃, 光催化活性显著增强, 600℃煅烧样品的光催化活性最高, 继续升高煅烧温度, 样品的光催化活性反而降低。由XRD图谱(图1)可知, 500℃煅烧, 样品中只有CuO相生成, 衍射峰弥散, 晶体发育不完整。随着煅烧温度的升高, 产物的组成成分和粒径大小均发生很大变化, CuO相衍射峰逐渐减小, CuAl₂O₄相衍射峰逐渐增大, 在600、700℃煅烧产物为CuO/ CuAl₂O₄复合物。继续升高温度, CuO相消失, 产物主要为CuAl₂O₄, 并且晶粒尺寸增大, 光催化活性减小。样品经600℃煅烧的活性最高, 此时达到最佳CuO/ CuAl₂O₄复合比例。

	Figure Option View Download New Window
	图7 煅烧温度对0.5wt% Zn-CuO/CuAl₂O₄样品降解甲基橙的影响Fig. 7 Effect of calcination temperatures on methyl orange degradation of 0.5wt% Zn-CuO/CuAl₂O₄ samples(a) 500℃; (b) 600℃; (c) 700℃; (d) 800℃; (e) 900℃

2.6.2 Zn加入量的影响

图8为经600℃煅烧后不同Zn加入量的样品对甲基橙溶液的降解效果。0wt% Zn-CuO/CuAl₂O₄、0.3wt% Zn-CuO/CuAl₂O₄、0.5wt% Zn-CuO/CuAl₂O₄、1wt% Zn-CuO/CuAl₂O₄、2wt% Zn-CuO/CuAl₂O₄样品对应的降解率依次为78%、90%、97%、76%、60%。随着Zn加入量的增加, 样品的光催化活性先增大后减小。这是由于随着Zn加入量的增加, 样品所对应的比表面积先增大后减小, 当Zn加入量为0.5wt%时, 样品的比表面积和孔体积最大。比表面积越大, 提供的活性位点越多, 更有利于反应物的吸附和内部电荷的转移, 因而催化效果越好^{[ 20, 21]}。

	Figure Option View Download New Window

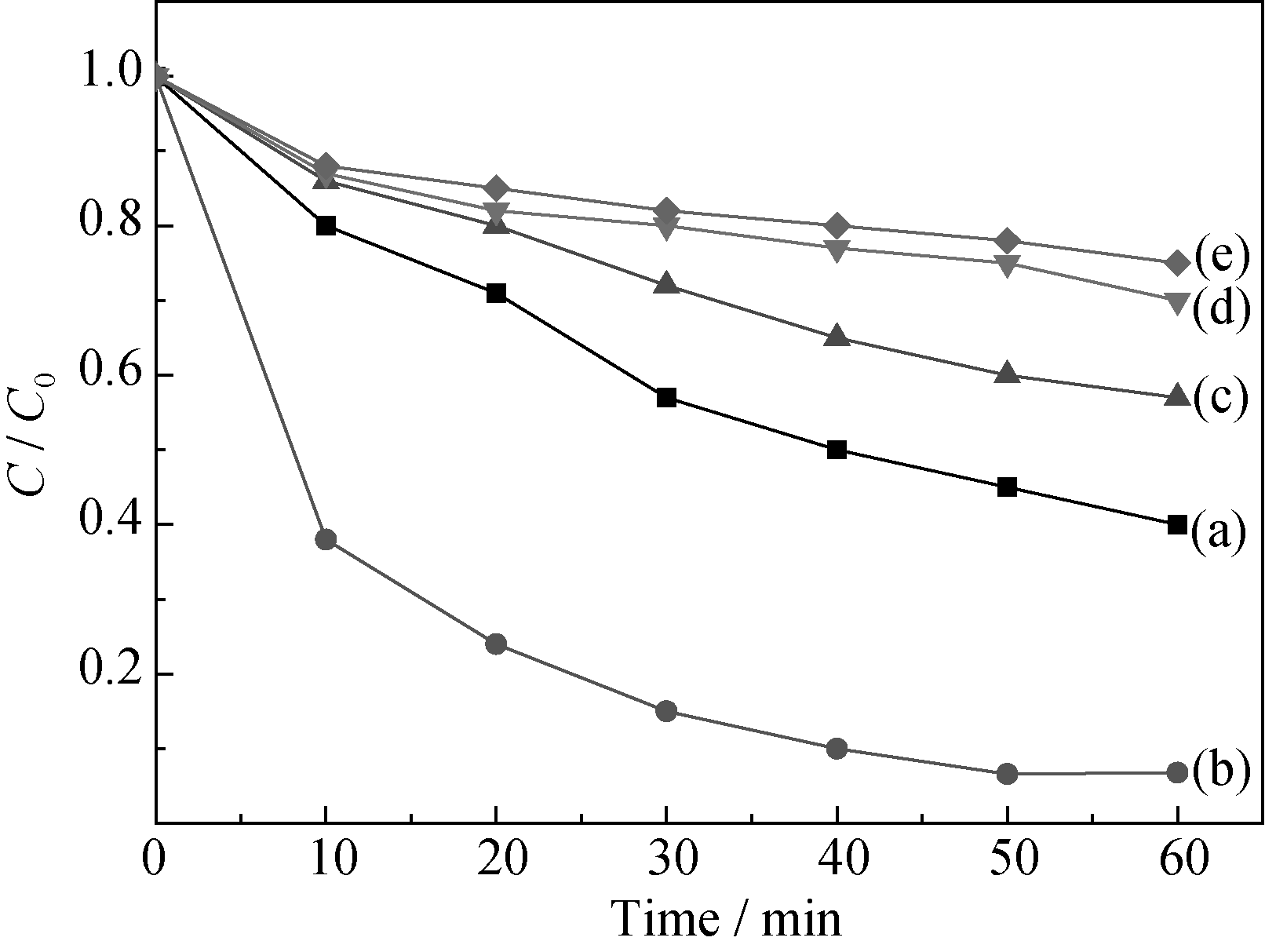

	图 8 Zn加入量对CuO/CuAl₂O₄样品降解甲基橙的影响Fig. 8 Effect of Zn doped content on methyl orange degradation of Zn-CuO/CuAl₂O₄samples(a) 0wt% Zn-CuO/CuAl₂O₄; (b) 0.3wt% Zn-CuO/CuAl₂O₄; (c) 0.5wt% Zn-CuO/CuAl₂O₄; (d) 1wt% Zn-CuO/CuAl₂O₄; (e) 2wt% Zn-CuO/ CuAl₂O₄ calcined at 600℃

3 结论

1) 煅烧温度对样品的晶体结构有较大影响。随着温度的升高, CuO相衍射峰逐渐减小, CuAl₂O₄相衍射峰逐渐增强, 600~700℃煅烧产物为CuO和CuAl₂O₄复合物, 煅烧温度继续升高, 产物主要为CuAl₂O₄相。

2) 引入Zn不改变样品原有的晶体结构, 随着Zn加入量的增加, 样品的比表面积先增大后减小, 当Zn加入量为0.5wt%时, 样品比表面积最大, 为214.97 cm²/g; Zn掺杂CuO/CuAl₂O₄样品在紫外和可见光区域的光吸收性能显著提高, 光致发光强度减弱, 表明光生电子-空穴对复合几率降低, 因而光催化活性有所提高。

3) 当煅烧温度为600℃, Zn加入量为0.5wt%时, 样品的光催化活性最高, 在模拟太阳光下照射60 min, 0.5 g/L催化剂用量对浓度为25 mg/L的甲基橙溶液的脱色率达到97%。

参考文献

View Option

[1]	LI F H, LIN H, LI J F, et al. Influence of LiF on the infrared transmissivity of magnesia alumina spinel transparent ceramics. Journal of Inorganic Materials, 2012, 27(4): 417-421. [本文引用:1] [JCR: 0.531] [CJCR: 1.106]
[2]	TORKIAN L, AMINI M M, BAHRAMI Z. Synthesis of nano crystalline MgAl₂O₄ spinel powder by microwave assisted combustion. Journal of Inorganic Materials, 2011, 26(5): 550-554. [本文引用:1] [JCR: 0.531] [CJCR: 1.106]
[3]	BAYAL N, JEEVANANDAM P. Synthesis of metal aluminate nanoparticles by Sol-Gel method and studies on their reactivity. J. Alloys Compd. , 2012, 516: 27-32. [本文引用:1] [JCR: 2.39]
[4]	NADERI M, SHAMIRIAN A, EDRISI M. Synthesis, characterization and photocatalytic properties of nanoparticles CuAl₂O₄ by pechini method using taguchi statistical design. J. Sol-Gel Sci. Technol. , 2011, 58(2): 557-563. [本文引用:1]
[5]	EDRISI M, TAJIK S, SOLEYMANI M. Synthesis of CuAl₂O₄ nanoparticles by mixed chelates thermolysis and homogeneous precipitation using solubility difference reactions; taguchi optimization and photocatalytic application. Journal of Materials Science: Materials in Electronics, 2013, 24(10): 3914-3920. [本文引用:1] [JCR: 1.486]
[6]	LIANG C X, LI X Y, QU Z P, et al. The role of copper species on Cu/γ-Al₂O₃ catalysts for NH₃-SCO reaction. Applied Surface Science, 2012, 258(8): 3738-3743. [本文引用:1] [JCR: 2.112]
[7]	SHANG H X, TIAN Y, WANG X T, et al. Photocatalytic H₂ evolution from glycerol solution over Bi³+-doped TiO₂ nanoparti-cles. Journal of Inorganic Materials, 2012, 27(12): 1283-1288. [本文引用:1] [JCR: 0.531] [CJCR: 1.106]
[8]	YIN J, ZANG Y S, YUE C, et al. Ag nanoparticle/ZnO hollow nanosphere arrays: large scale synthesis and surface plasmon resonance effect induced Raman scattering enhancement. J. Mater. Chem. , 2012, 22(16): 7902-7909. [本文引用:1] [JCR: 5.968]
[9]	ZHAO G, LIU S W, LU Q F. Synthesis of TiO₂/Bi₂WO₆ nanofibers with electrospinning technique for photocatalytic methyl blue degradation. J. Sol-Gel Sci. Technol. , 2013, 66(3): 406-412. [本文引用:1]
[10]	LI Z Q, CHEN X T, XUE Z L. Microwave-assisted synthesis and photocatalytic properties of flower-like Bi₂WO₆ and Bi₂O₃-Bi₂WO₆ composite. J. Colloid Interface sci. , 2013, 394: 69-77. [本文引用:1] [JCR: 3.172]
[11]	TIAN G H, CHEN Y J, MENG X Y, et al. Hierarchical composite of Ag/AgBr nanoparticles supported on Bi₂MoO₆ hollow spheres for enhanced visible-light photocatalytic performance. ChemPlusChem, 2013, 78(1): 117-123. [本文引用:1]
[12]	BAO Y, YANG Y Q, MA J Z. Research progress of hollow structural materials prepared via templating method. Journal of Inorganic Materials, 2013, 28(5): 459-468. [本文引用:1] [JCR: 0.531] [CJCR: 1.106]
[13]	ZHAO B, LIN L, CHEN C, et al. Research progress on crystal growth mechanism of titania/titanate nano-powder materials. Journal of Inorganic Materials, 2013, 28(7): 683-690. [本文引用:1] [JCR: 0.531] [CJCR: 1.106]
[14]	MENG H X, WANG B B, LIU S, et al. Hydrothermal preparation, characterization and photocatalytic activity of TiO₂/Fe-TiO₂ composite catalysts. Ceram. Int. , 2013, 39(5): 5785-5793. [本文引用:1] [JCR: 1.789]
[15]	YIN B, WANG J T, XU W, et al. Preparation of TiO₂/mesoporous carbon composites and their photocatalytic performance for methyl orange degradation. New Carbon Materials, 2013, 28(1): 47-54. [本文引用:1] [JCR: 0.981] [CJCR: 1.397]
[16]	ZHANG L, YAN J H, ZHOU M J, et al. Fabrication and photocatalytic properties of spheres-in-spheres ZnO/ZnAl₂O₄ composite hollow microspheres. Appl. Surf. Sci. , 2013, 268: 237-245. [本文引用:1] [JCR: 2.112]
[17]	ZHANG L, YAN J H, ZHOU M J, et al. Preparation and photocatalytic property of hollow sphere-like ZnO/ZnAl₂O₄ composite photocatalysts with high specific surface area. Journal of Inorganic Chemistry, 2012, 28(9): 1827-1834. [本文引用:1]
[18]	LV K, YU J, DENG K, et al. Synergistic effects of hollow structure and surface fluorination on the photocatalytic activity of titania. Journal of Hazardous Materials, 2010, 173(1): 539-543. [本文引用:1] [JCR: 3.925]
[19]	ZHANG Y J, XU Y, LI T, et al. Preparation of ternary Cr₂O₃-SiC-TiO₂ composites for the photocatalytic production of hydrogen. Particuology, 2012, 10(1): 46-50. [本文引用:1] [JCR: 1.419] [CJCR: 0.4971]
[20]	DONG F, SUN Y J, FU M, et al. Room temperature synthesis and highly enhanced visible light photocatalytic activity of porous BiOI/BiOCl composites nanoplates microflowers. Journal of Hazardous Materials, 2012, 219: 26-34. [本文引用:1] [JCR: 3.925]
[21]	LEE S S, BAI H W, LIU Z Y, et al. Novel-structured electrospun TiO₂/CuO composite nanofibers for high efficient photocatalytic cogeneration of clean water and energy from dye wastewater. Water Research, 2013, 47(12): 4059-4073. [本文引用:1] [JCR: 4.655]
